Product Introduction

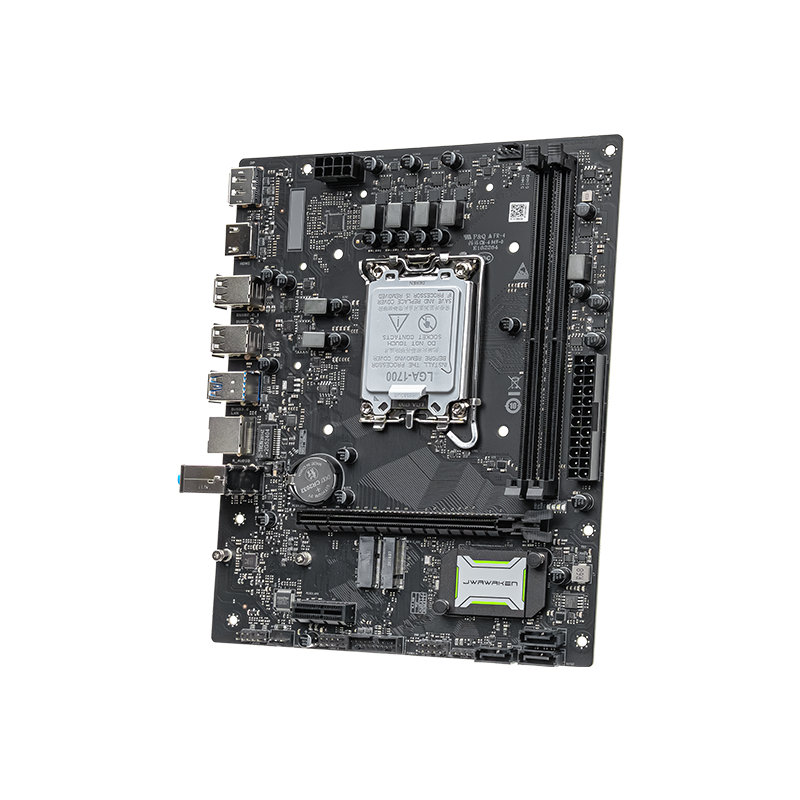

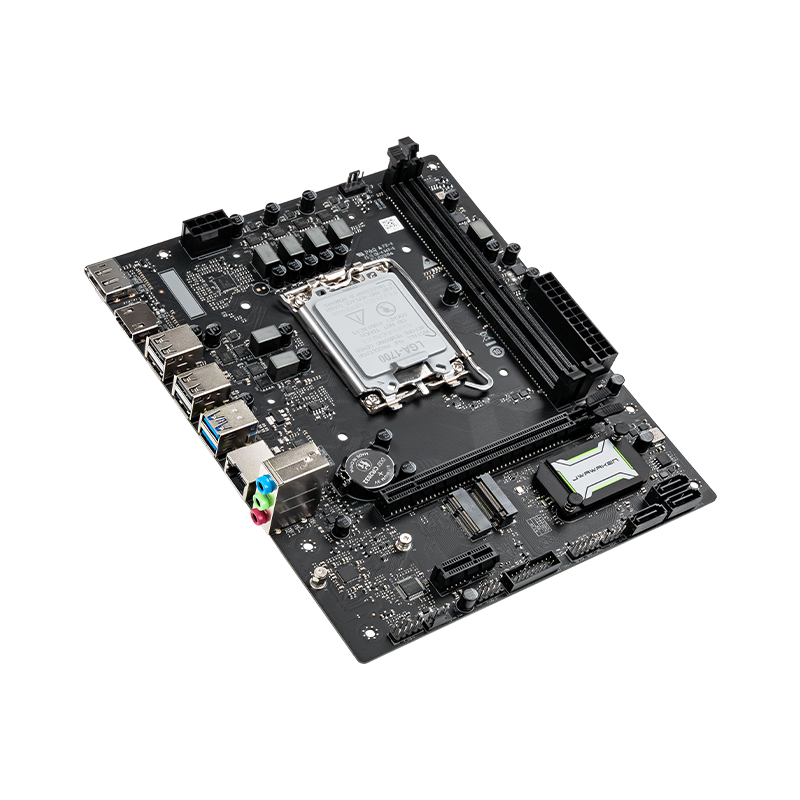

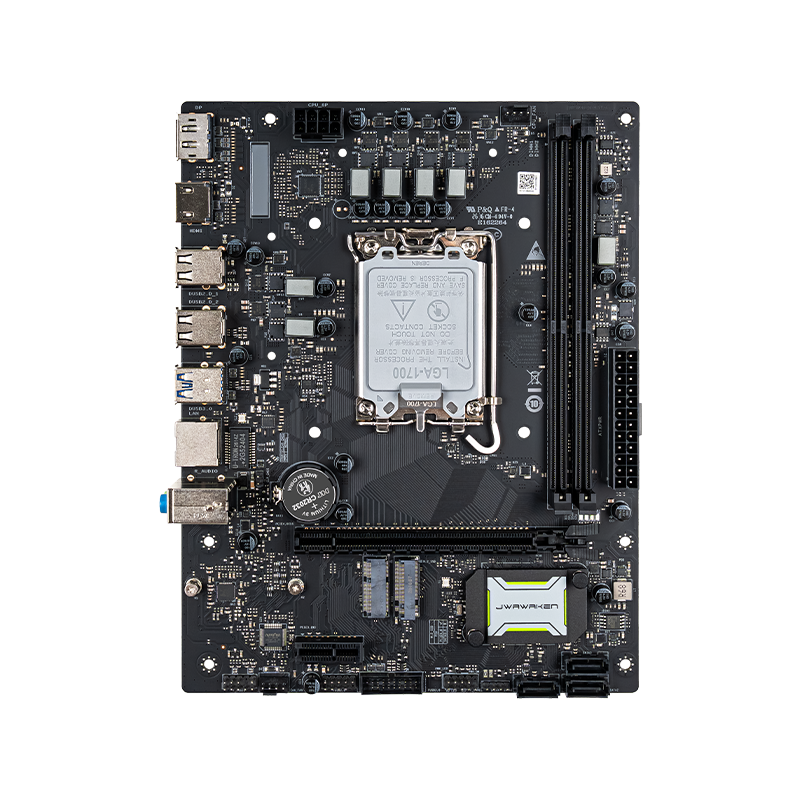

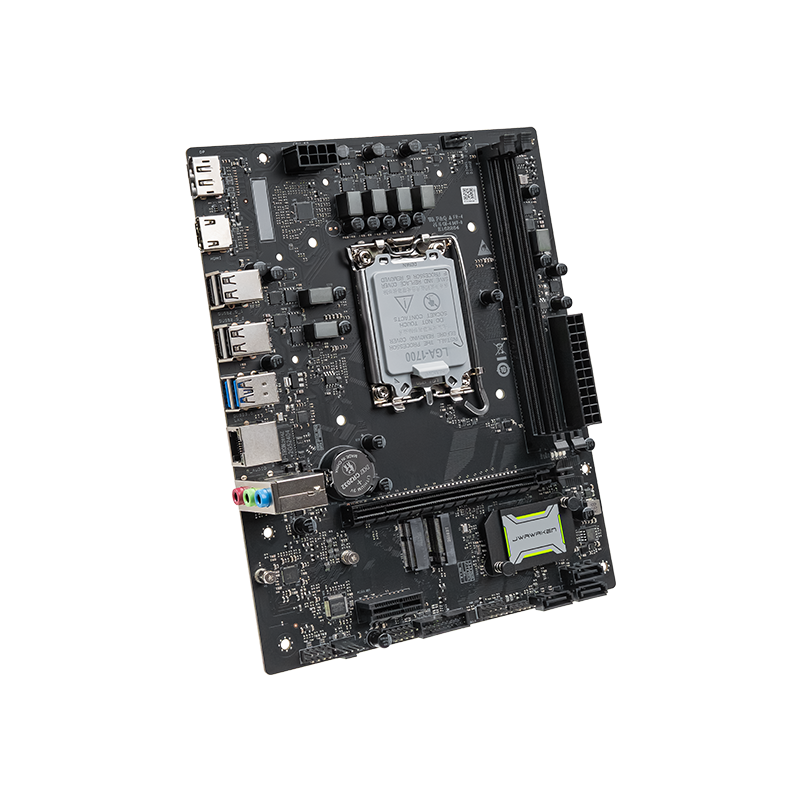

GHOST B760M

model：GHOST B760M D4

$64.99

Core Advantages
6-Phase Smart Power Delivery
Dual DDR4, Up to 64GB (2×32GB)
Debug Status LED
Six-fold Hardware Safeguard

After-sales：
7-Day Free Return & Exchange
3-Month Direct Replacement
3-Year Warranty | Self RMA Supported

Buy Now Buy Now
Contact Customer Service Contact Customer Service
Product Overview
Specifications
Frequently Asked Questions
Technical Support
Compatibility List

  • CPU Supports INTEL 14th / 13th / 12th Gen Desktop Processors, Intel® Pentium® Gold and Celeron® Processors with AM4 Socket
    (* Please refer to the JWAWAKEN official website for the list of supported processors)
  • Chipset Intel® B760 Chipset
  • Memory 2 x DDR4 UDIMM，Maximum Memory Capacity 64 GB (single slot supports up to 32 GB)
    supports up to 7800+MT/s(OC) Non-ECC Un-buffered memory modules*
    Supports Dual-Controller Dual-Channel mode
    Supports Intel® Extreme Memory Profile (XMP) technology
    (*Memory compatibility and supported speeds can vary depending on the CPU and memory configuration. For detailed information, please refer to the Memory Compatibility List available on the product’s Support page or visit JWAWAKEN official website.)
  • Display 1 x HDMI™ 1.4 port, supporting a resolution of up to 4K@60Hz
    1 x DP 1.2 port, supporting a resolution of up to 4K@30Hz Supports simultaneous dual-display output （*Graphics specifications may vary depending on the CPU installed.）
  • Storage Features 1 M.2 slots and 3 SATA 6 Gb/s storage interfaces in total.
    M.2_1 slot(From PCH) M key；type 2280；supports PCIe4.0x4mode
    3 x SATA 3.0 slots
    *Intel® Rapid Storage Technology supports SATA RAID 0/1/5/10
  • Network & Bluetooth 1 x Realtek 1Gb network RJ45 Interface
    1 x Horizontal M.2_WIFI Slot (Key E), expandable for Wi-Fi/BT module card
  • Audio Realtek High-Definition Audio Codec Chip
    Supports Audio Detection, Multi-Source Independent Output and Front Panel Audio Jack Switching Function
    Supports up to 24-bit/192kHz Playback
    Left and Right Channel Layered Design
  • USB Rear USB Ports:
    2 x USB3.2 Gen1 5Gbps Type-A ports
    4 x USB 2.0 Type-A ports
    Front USB Ports:
    1 x USB3.2 Gen1 header，expandable to 2 x USB3.2 Gen1 ports
    1 x USB2.0 headers，expandable to 2 x USB2.0 ports
  • Expand 1 x PCIe 4.0 x16 slot
    1 x PCIe 3.0 x1 slot

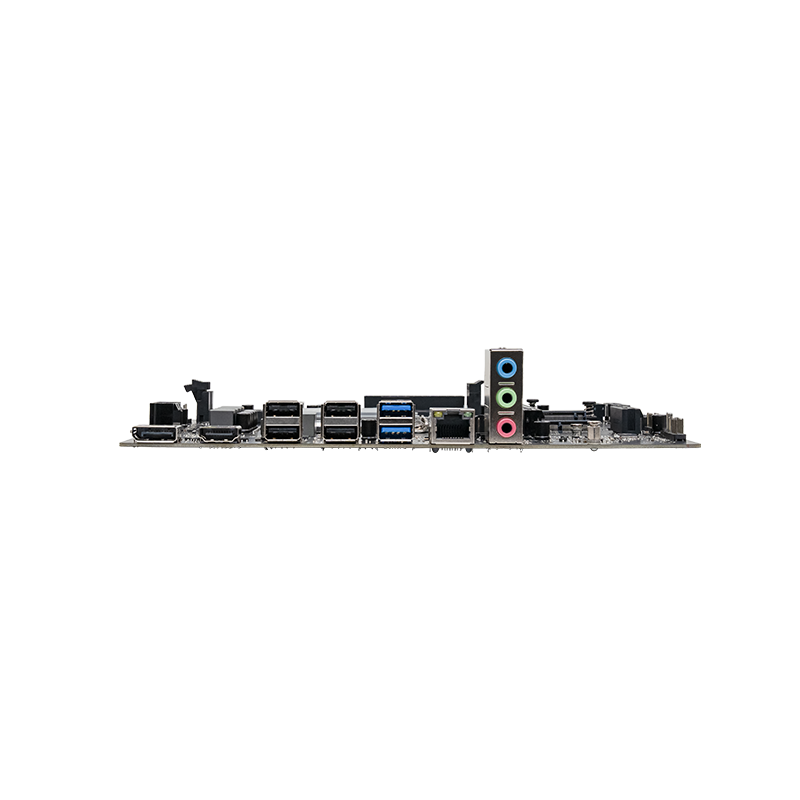

  • Rear I/O Interface 2 x USB3.2 Gen1 5Gbps Type-A ports
    4 x USB 2.0 Type-A ports
    1 x HDMI™ port
    1 x DP port
    1 x Realtek 1000Mb network RJ45 Interface
    3 x Audio Interface (Line out+Line in+Mic in)
  • Internal I/O Interface 1 x 24pin motherboard power socket
    1 x 8pin CPU power socket
    1 x M.2 SSD slots（Key M）
    1 x M.2 WIFI slots（Key E）
    3 x SATA 6Gb/s device interfaces
    1 x 4pin CPU fan header
    1 x 4pin case fan headers
    1 x USB3.2 Gen1 header，expandable to 2 x USB3.2 Gen1 ports
    1 x USB2.0 header，expandable to 2 x USB2.0 ports
    1 x 9pin front panel header
    1 x 9pin front panel audio header
    1 x 4pin speaker header
    1 x 2pin clear CMOS jumper
  • BIOS 1 x 128 Mb Flash ROM, UEFI AMI BIOS
    3rd Generation Innovative Visual BIOS Interface
  • Operating System supports Windows 11 64-bit
  • Software supports JW Connect software
    *The functions supported by JW Connect may vary depending on the specifications of different motherboards.
  • PCB Info Micro ATX Form Factor; 220mm x 170mm

  • Drive

  • Equipment List&Software

  • BIOS

  • Manual

File Version System Update Date Brief Introduction Download
Audio 6.0.9879.1.zip win11/64 bit 2025-08-26 Realtek AUDIO Driver
Chipset 10.1.46.5.zip win11/64 bit 2025-08-26 INTEL B760 Chipset Driver
CPU Graphic win11/64 bit 2024-06-08 Intel CPU Graphic Driver
LAN 10.74.1128.2024.zip win11/64 bit 2024-11-18 Realtek Ethernet Drivers
ME 2407.6.1.0.zip win11/64 bit 2024-02-11 Intel Management Engine Interface
Serial IO 30.100.2237.26.zip win11/64 bit 2022-09-06 Intel Serial IO
JW Connect_V3.3_20260601.exe win11/64 bit 2026-06-01 JW Connect Application
File Version System Update Date Brief Introduction Download
JW Connect_V3.3_20260601.exe win11/64 bit 2026-06-01 JW Connect Application
File Version System Update Date Brief Introduction Download
GHOST B760M D4.zip win11/64 bit 2026-01-16 GHOST B760 D4
File Version System Update Date Brief Introduction Download
GHOST B760M User Manual_V1.0_260204.pdf win11/64 bit 2026-02-04 GHOST B760M User Manual

  • CPU

  • Memory

Processor CPU Model Frequency Wattage Core Name L3 Cache Cores GPU
I7 I7-12700 2.1GHz 65W Alder Lake 25MB 12 Intel® UHD Graphics 770
I9 I9-12900KS 3.4GHz 150W Alder Lake 30MB 16 Intel® UHD Graphics 770
I5 I5-12400 2.5GHz 65W Alder Lake 18MB 6 Intel® UHD Graphics 730
G G6900 3.4GHz 46W Alder Lake 4MB 2 Intel® UHD Graphics 710
G G7400 3.7GHz 46W Alder Lake 6MB 2 Intel® UHD Graphics 710
I3 I3-12100 3.3GHz 60W Alder Lake 12MB 4 Intel® UHD Graphics 730
I5 I5-13600K 3.5GHz 125 W Raptor Lake 24MB 14 Intel® UHD Graphics 770
I9 I9-13900 2.00 GHz 65 W Raptor Lake 36 MB 24 Intel® UHD Graphics 770
I5 I5 13600 2.70 GHz 65 W Raptor Lake 24 MB 14 Intel® UHD Graphics 770
I7 I7 13700 2.10 GHz 65 W Raptor Lake 30 MB 16 Intel® UHD Graphics 770
I9 I9 13900K 3.00 GHz 125 W Raptor Lake 36 MB 24 Intel® UHD Graphics 770
I7 I7-14700K 3.4 GHz 125 W Raptor Lake-Refresh 33 MB 20 Intel® UHD Graphics 770
I9 I9-14900K 3.2 GHz 125 W Raptor Lake-Refresh 36 MB 24 Intel® UHD Graphics 770
I5 I5-14600K 3.5 GHz 125 W Raptor Lake-Refresh 24 MB 14 Intel® UHD Graphics 770
I3 I3-14100 3.5 GHz 60 W Raptor Lake-Refresh 12 MB 4 Intel® UHD Graphics 730
intel 7 300T 3.4 GHz 35 W Raptor Lake-Refresh 6 MB 2 Intel® UHD Graphics 710
RAM Speed Module Supplier Module P/N Capacity XMP/EXPO Support Spported Speed Chip Brand Timing Voltage Socket Support RGB
3000 VENGEANCE / 32G Non-XMP 3000 / / / 1,2 /
4266 Kingston HX442C19PB3K2/16 8G Non-XMP 4266 / / / 1,2 /
4600 Thermaltake R016D408GX2-4600C19A 8G Non-XMP 4600 / / / 1,2 /
2666 UniIC SCE16GU13H1F1C-26V 16G Non-XMP 2666 / / / 1,2 /
2400 Transcend TS1GLH72V4B-100 8G Non-XMP 2400 / / / 1,2 /
2666 Ramaxel RMSA3300MH78HBF-2666 16G Non-XMP 2666 / / / 1,2 /
3200 Samsung M378A4G43AB2-CWE 32G Non-XMP 3200 / / / 1,2 /
3600 G.SKILL F4-3600C16D-16GTZNC 8G Non-XMP 3600 / / / 1,2 /
3000 Team Team 8G/DDR4-3000 8G Non-XMP 3000 / / / 1,2 /
4000 Team TF13D48G4000HC18JBK 8G Non-XMP 4000 / / / 1,2 /
4800 Team TF13D48G4800HC20ABK 8G Non-XMP 4800 / / / 1,2 /
2666 Asgard VMA42UG-MIC1U22T2 8G Non-XMP 2666 / / / 1,2 /
2666 Skhynix HMA82GU6CJR8N-VK 8G Non-XMP 2666 / / / 1,2 /
3600 Apacer GD2.22278H.004 8G Non-XMP 3600 / / / 1,2 /
2400 Tigo TMKU8G68ALFBVX-2400U 8G Non-XMP 2400 / / / 1,2 /
3600 Gloway TAC4U3600G14082C C14 8G Non-XMP 3600 / / / 1,2 /
